Economy 3.5mm Male and Female Calibration Kit 8.5 GHz (Including Adapters)
Economy 3.5mm Male and Female Calibration Kit 8.5 GHz (Including Adapters)
Couldn't load pickup availability
VNA Calibration kit including all standards.
A great economy option which can be used to make precision measurements rivalling a much more expensive calibration kit.
Includes
- 3.5mm Male and Female Open, Short and Load standards
- 3.5mm Phase matched adapters
- Male - Male
- Female - Female
- Male - Female
- Wooden box
- USB stick with calibration files
(Note, this kit does not include the torque wrench. See our other listing which comes complete with torque wrench).

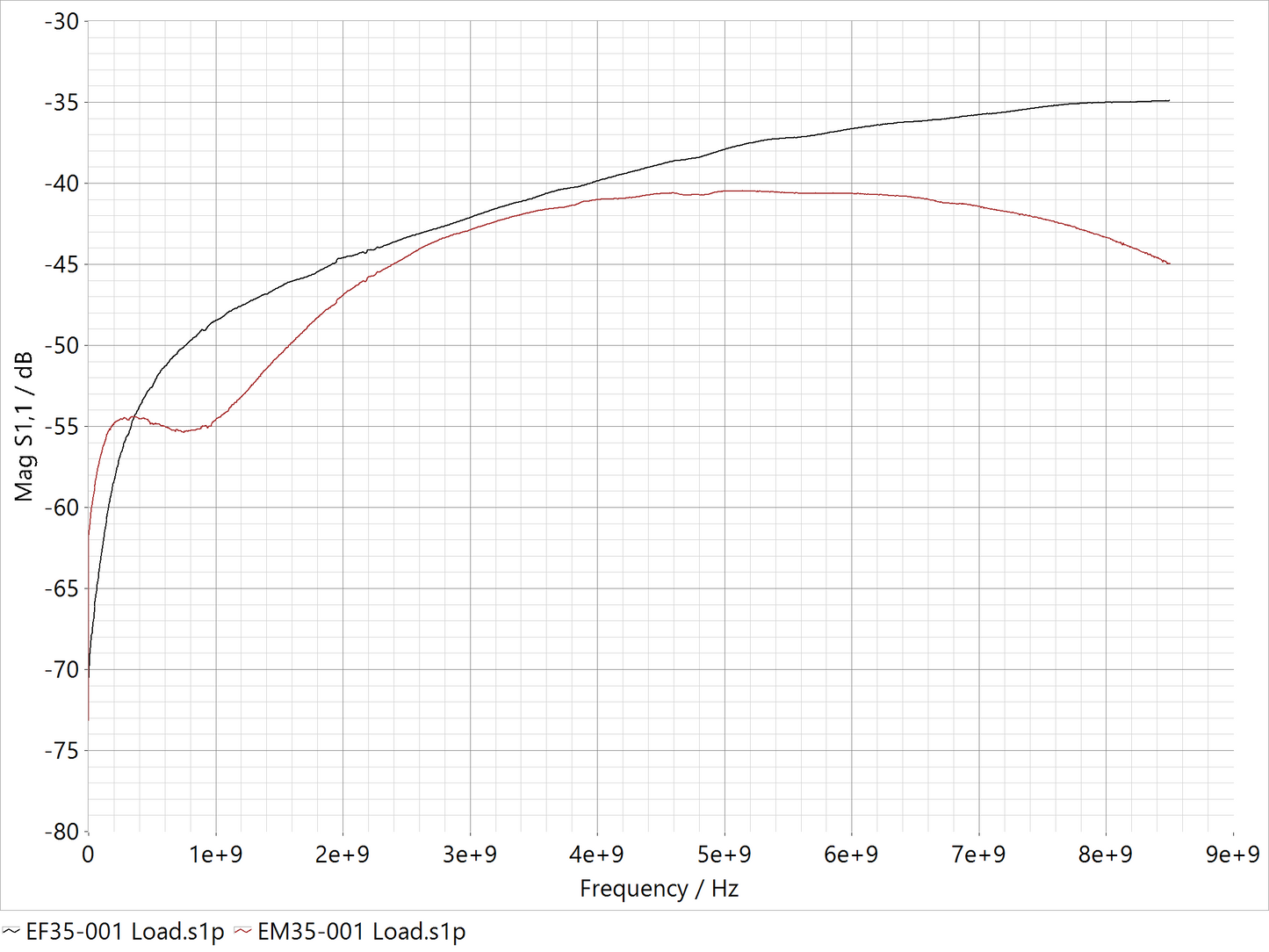

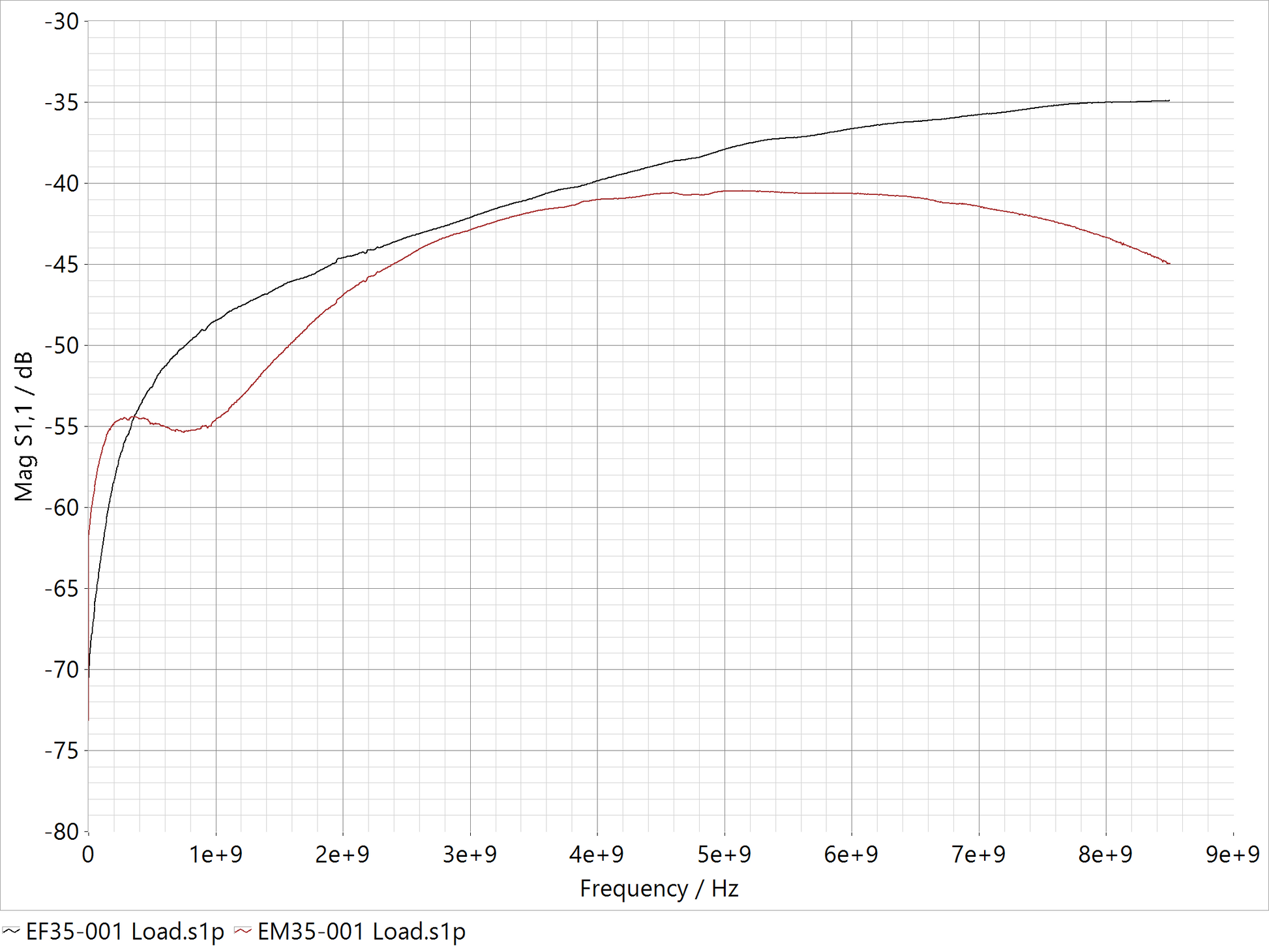

This is the next level up from our base range. You can expect the loads to have better than 36dB Return loss to at least 6 GHz and likely higher.
Supplied with a USB stick containing individually measured touchstone s1p files and individually calculated data models for each of the standards.
Data models include Open: Z0, Delay, Loss, C0, C1, C2, C3
Short: Z0, Delay, Loss, L0, L1, L2, L3
Load: Z0, Delay
Adapters: Z0, Delay, Loss
To achieve the highest accuracy this kit is capable of, we recommend using data-based standards with the supplied touchstone files.
The measurements were taken on a VNA calibrated with a genuine Agilent calibration kit.
