Complete Economy 3.5mm Male and Female Calibration Kit 8.5 GHz

Complete 3.5mm VNA Calibration kit.

A great economy option which can be used to make precision measurements rivalling a much more expensive calibration kit.

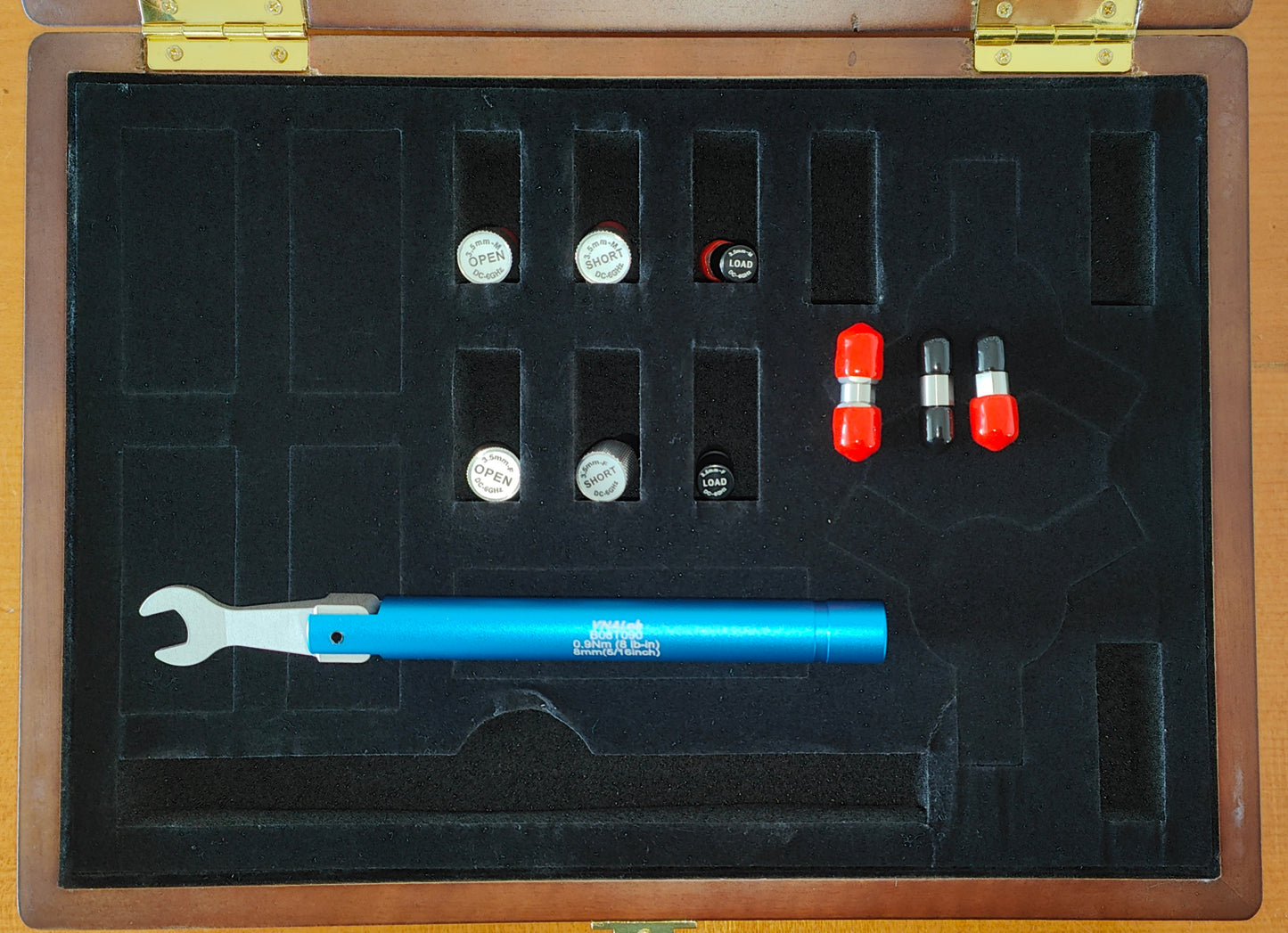

Includes

• 3.5mm Male and Female Open, Short and Load standards
• Male to Male 3.5mm adapter
• Female to Female 3.5mm adapter
• Male to Female 3.5mm adapter
• Torque wrench
• Wooden box
• USB stick with calibration files

(Note, We also sell this kit without the adapters and torque wrench)

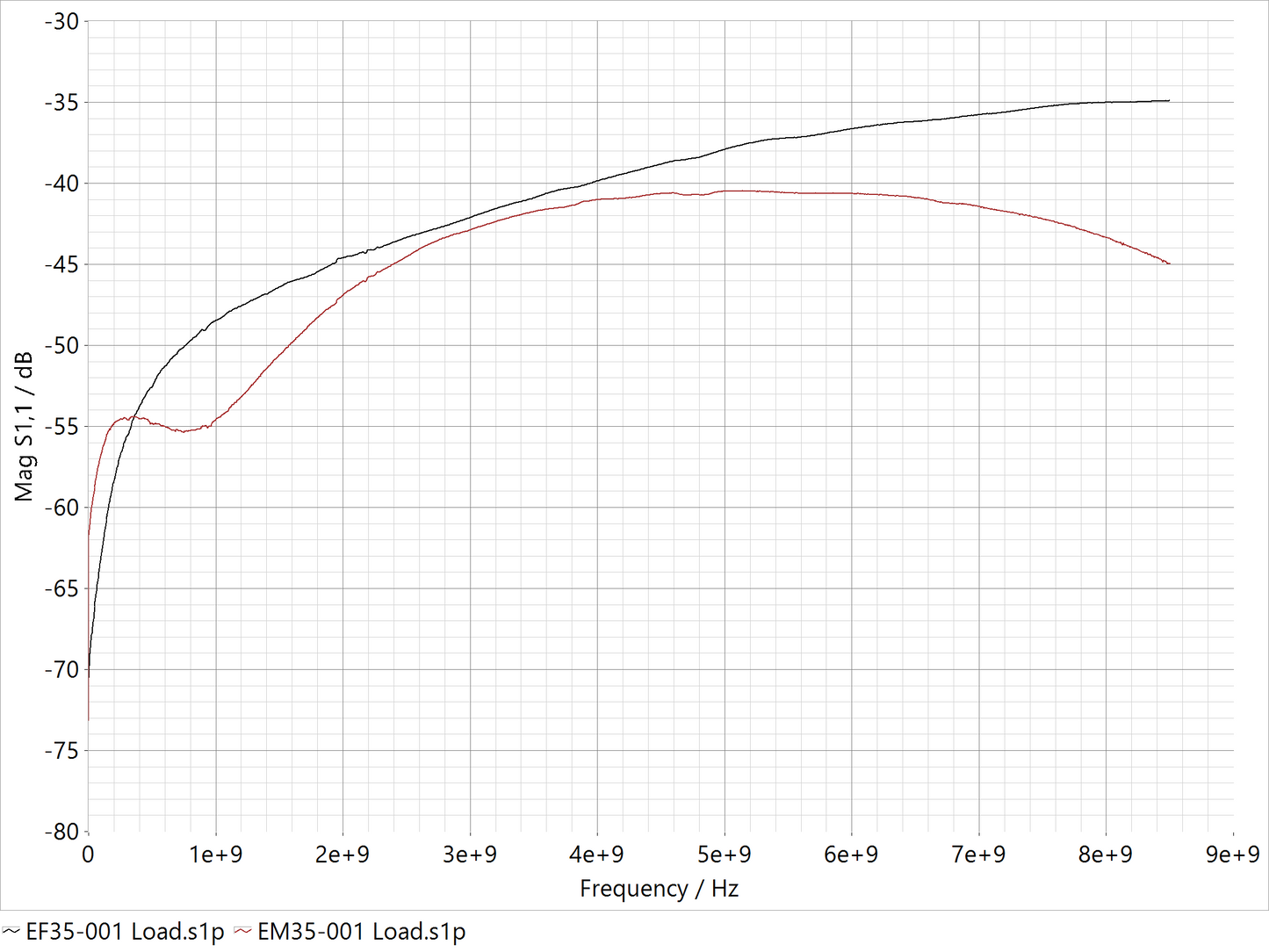

This is the next level up from our base range. The load is specified to be better than 36dB Return loss to at least 6 GHz.

Supplied with a USB stick containing individually measured touchstone s1p files and individually calculated data models for each of the standards and s2p files and delay's for each of the adapters.

Data models include Open: Z0, Delay, Loss, C0, C1, C2, C3

Short: Z0, Delay, Loss, L0, L1, L2, L3

Load: Z0, Delay

To achieve the highest accuracy this kit is capable of, we recommend using data-based standards with the supplied touchstone files.

The measurements were taken on a VNA calibrated with a genuine Agilent calibration kit.
