Economy 3.5mm Female Calibration Kit 8.5 GHz (now including Thru adapter)

VNA Calibration kit, 3.5mm Female connectors.

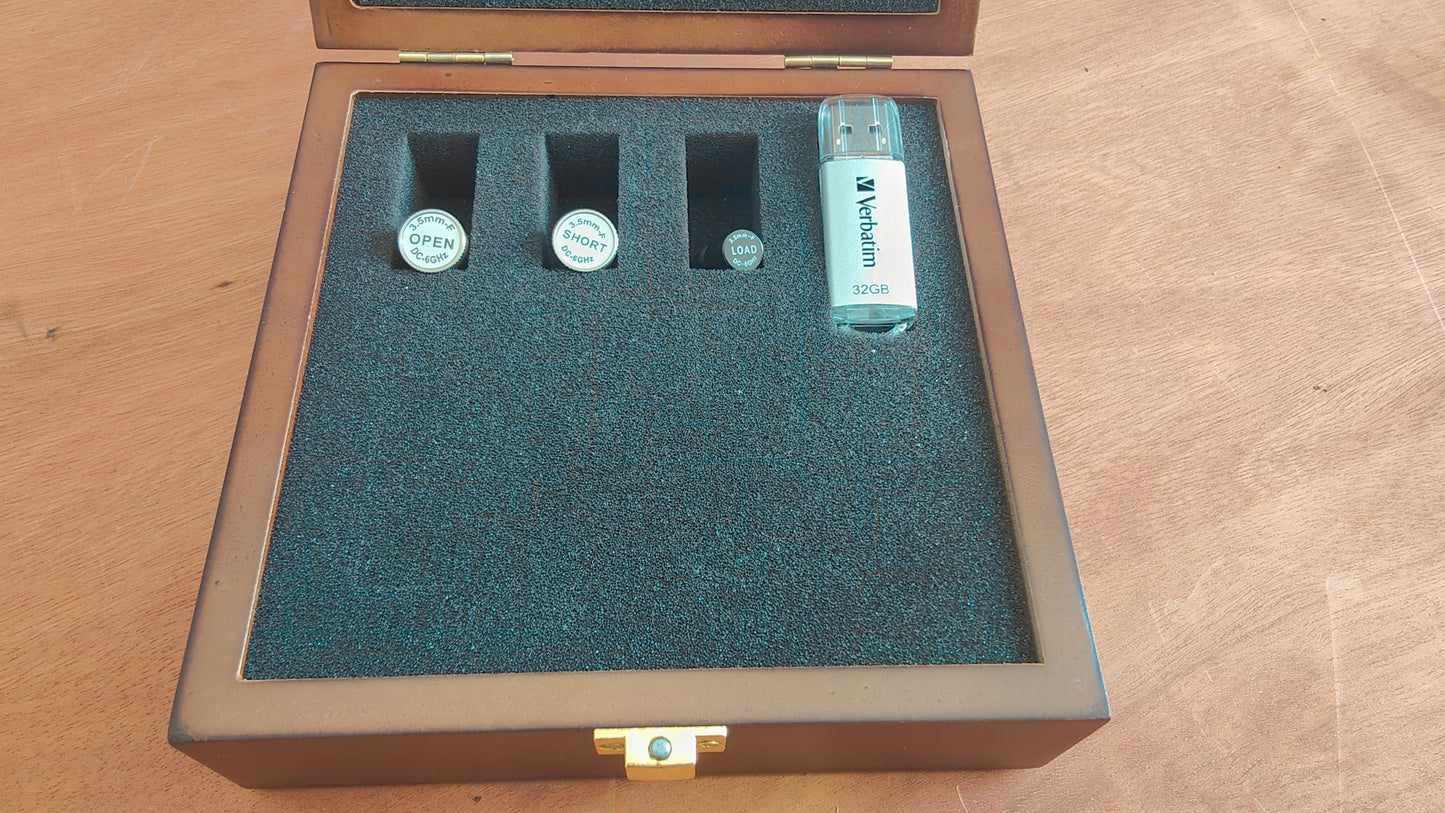

Open, Short and Load and Thru adapter

A great economy option which can be used to make precision measurements rivalling a much more expensive calibration kit.

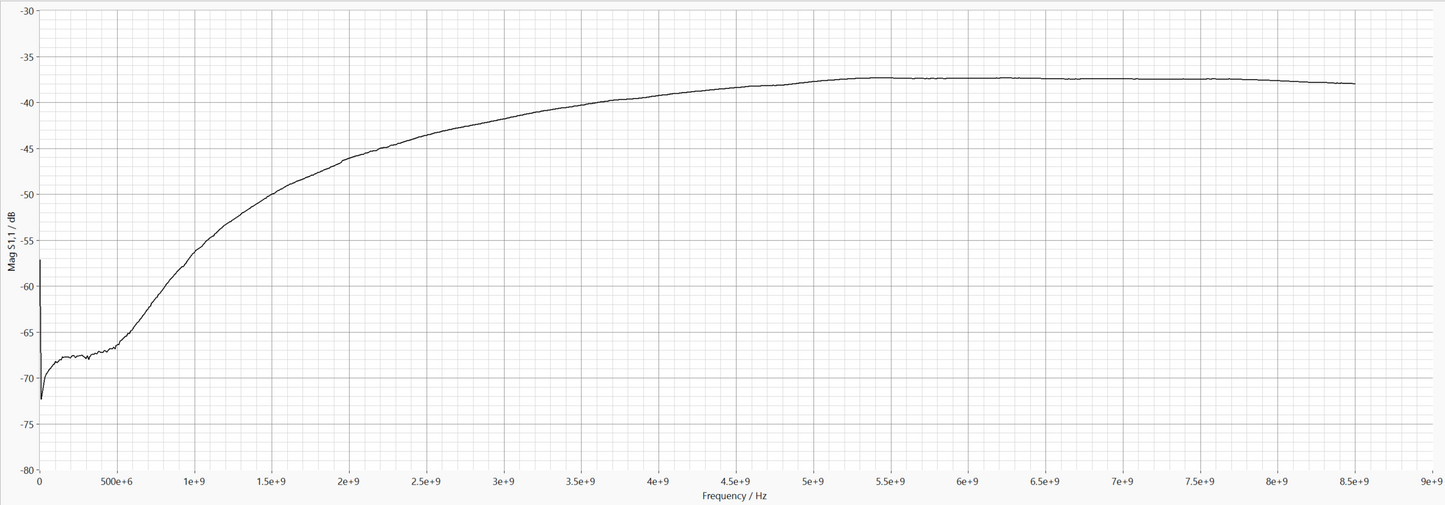

This is the next level up from our base range. You can expect the load to have better than 36dB Return loss to at least 6 GHz and likely higher.

Supplied with a USB stick containing individually measured touchstone S1P/S2P files and individually calculated data models for each of the three standards and the Thru adapter

Data models include Open: Z0, Delay, Loss, C0, C1, C2, C3

Short: Z0, Delay, Loss, L0, L1, L2, L3

Load: Z0, Delay

Thru:, Z0, Delay

To achieve the highest accuracy this kit is capable of, we recommend using data-based standards with the supplied touchstone files.

The measurements were taken on a VNA calibrated with a genuine Agilent calibration kit.
