Complete Precision 3.5mm Male and Female Calibration Kit 9 GHz

Precision 3.5mm VNA Calibration kit.

A high performance calibration which can be used to make precision measurements rivalling a much more expensive calibration kit.

Includes

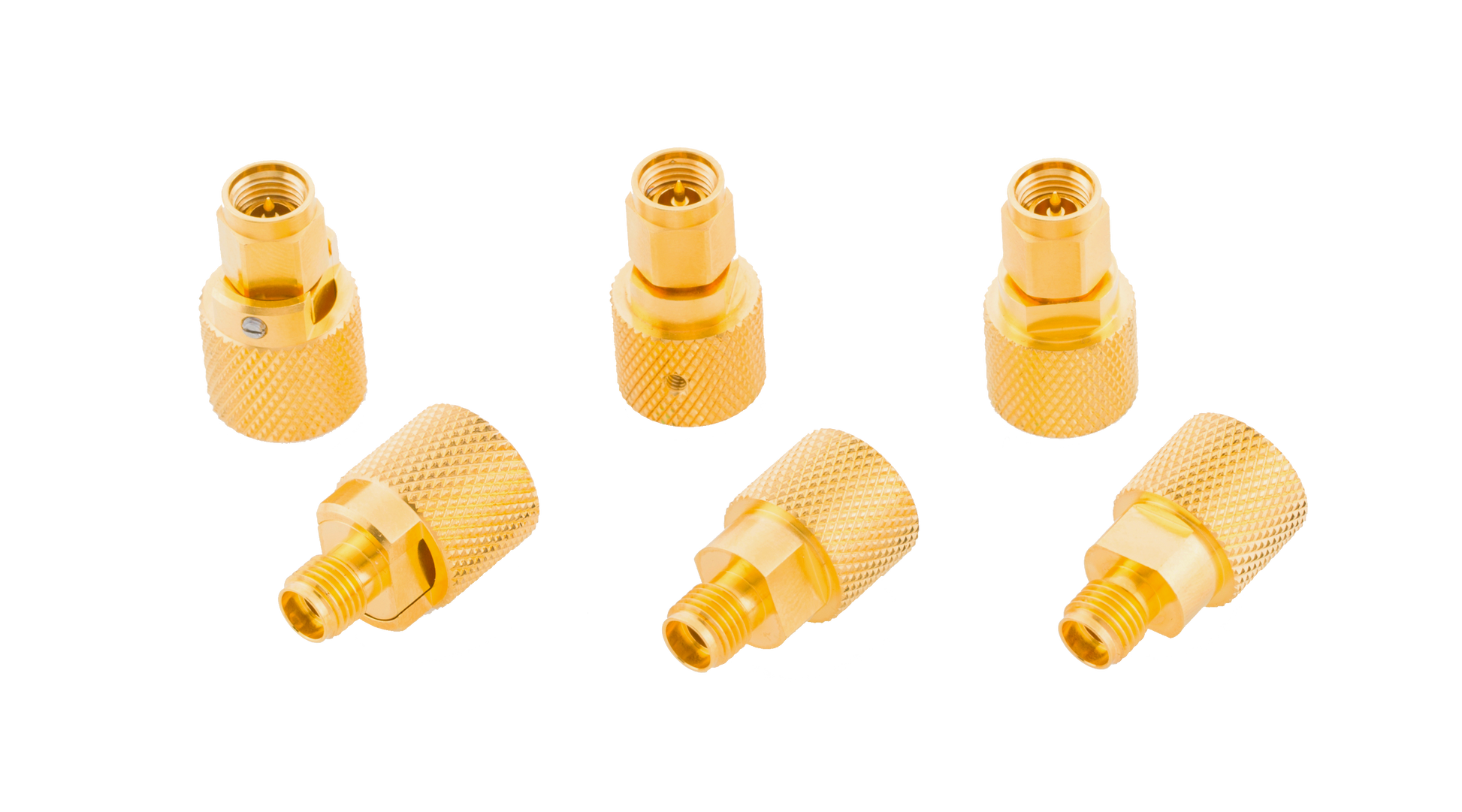

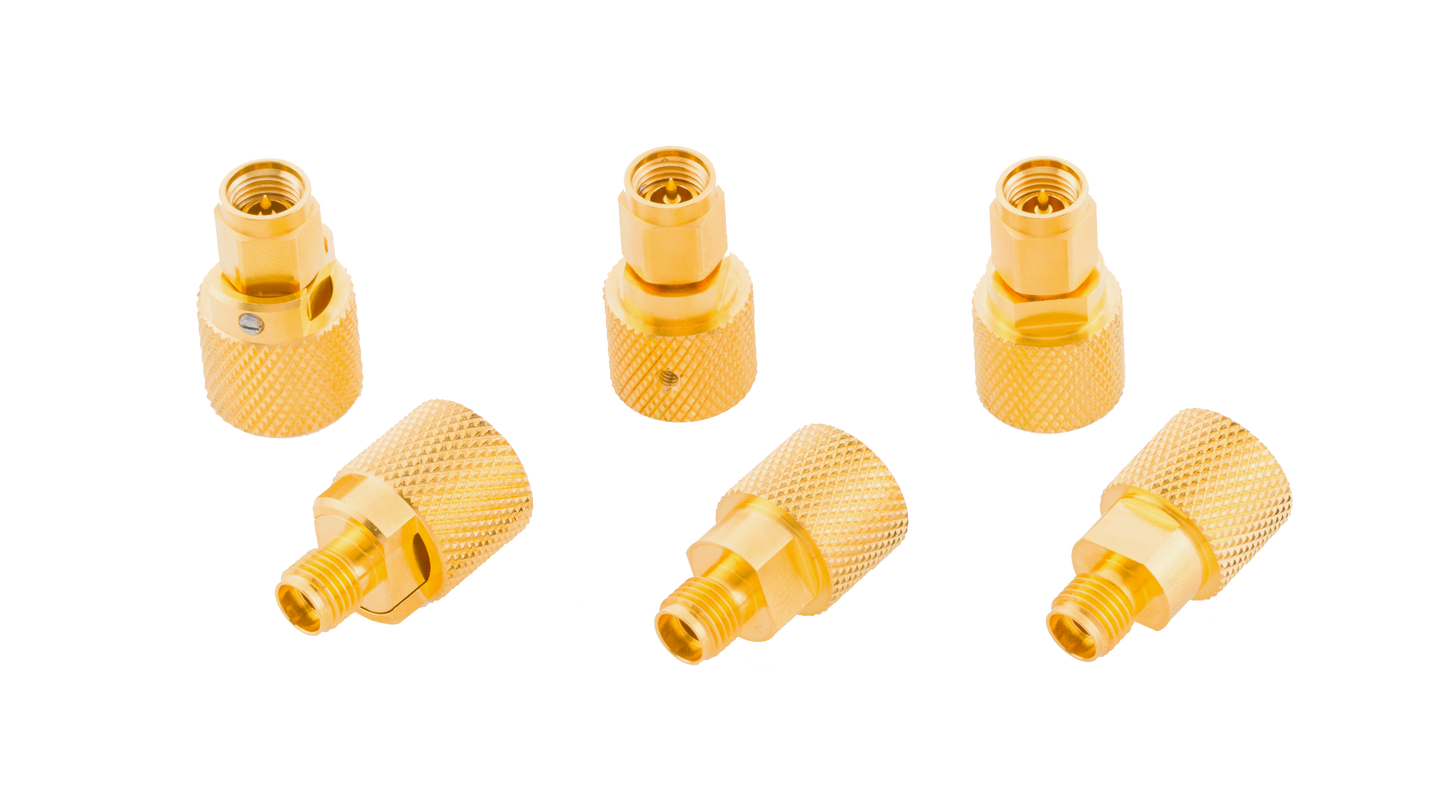

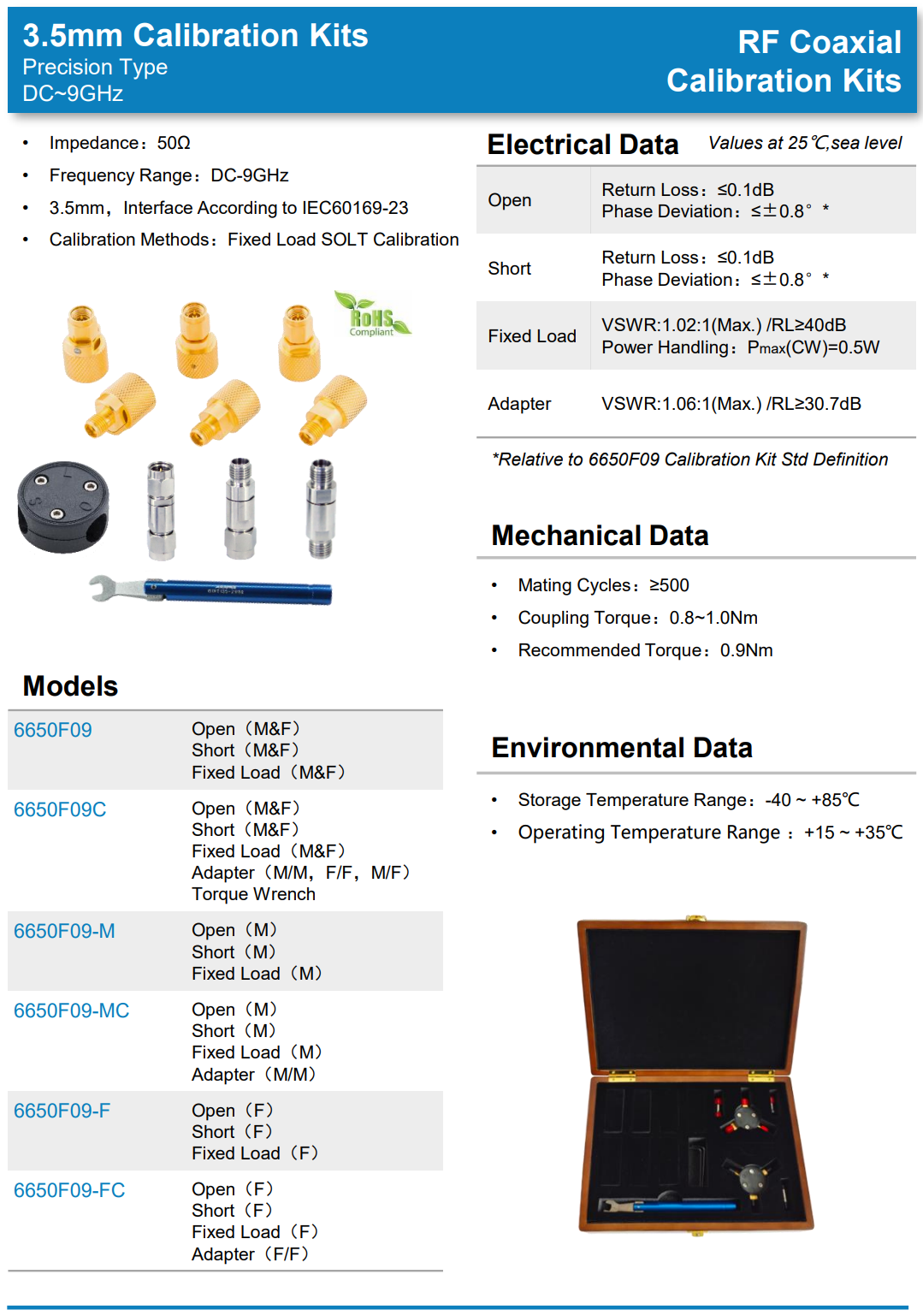

• 3.5mm Male and Female Open, Short and Load standards
• Three phase matched adapters:
  • Male to Male 3.5mm adapter
  • Female to Female 3.5mm adapter
  • Male to Female 3.5mm adapter
• Torque wrench
• Wooden box
• USB stick with calibration files and data

(Note, We also sell this kit without the adapters and torque wrench)

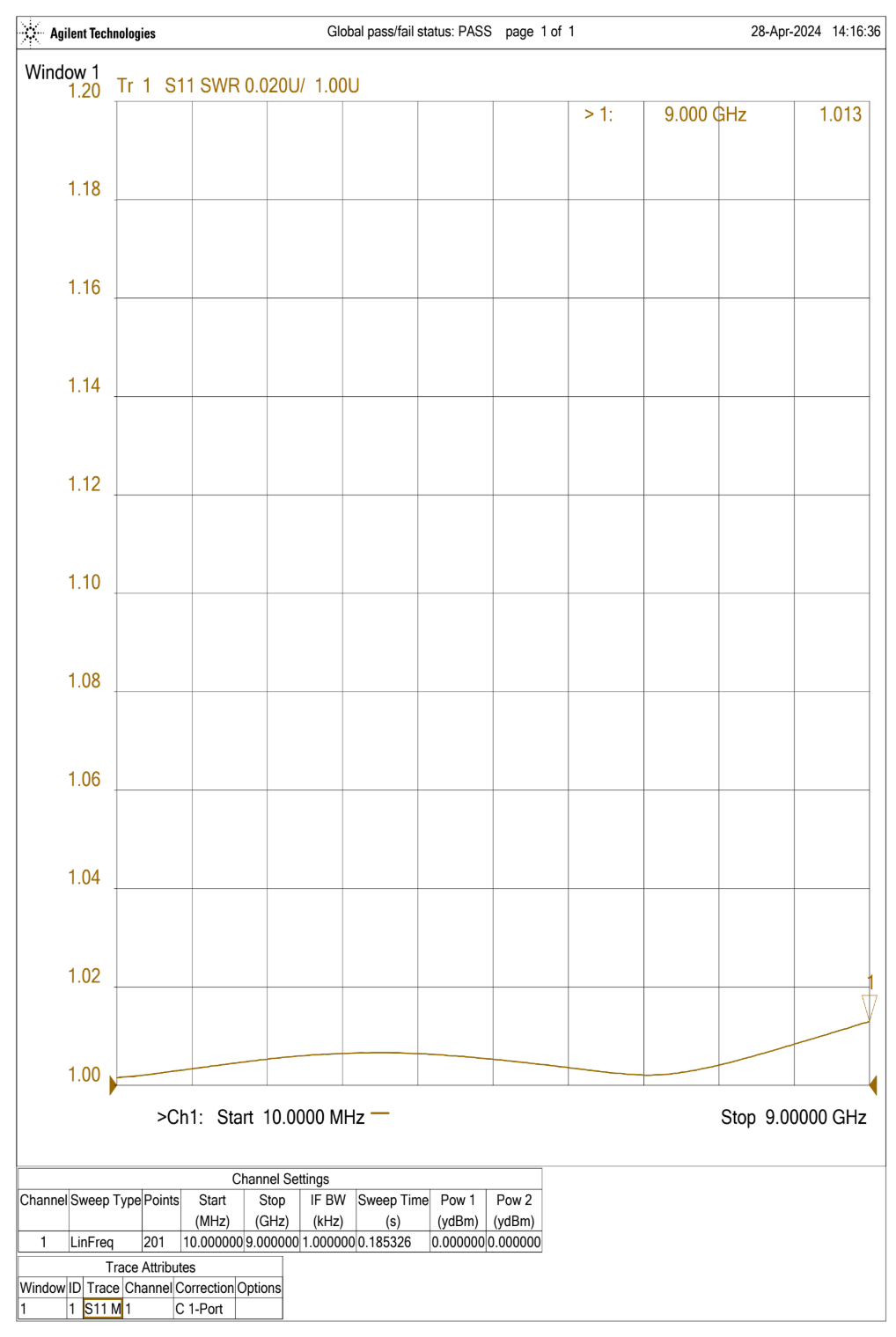

This is a level up from our economy range. The load is specified to be better than 40dB Return loss to at least 9 GHz. Typical performance will exceed this.

Supplied with a USB stick containing individually measured touchstone s1p files and individually calculated data models for each of the standards and s2p files and delay's for each of the adapters.

Data models include:

Open: Z0, Delay, Loss, C0, C1, C2, C3

Short: Z0, Delay, Loss, L0, L1, L2, L3

Load: Z0, Delay

To achieve the highest accuracy this kit is capable of, we recommend using data-based standards with the supplied touchstone files.

The measurements were taken on a VNA calibrated with a genuine Agilent calibration kit.

Measurements are provided to 9 GHz. For measurements to 20 GHz please add the measurement upgrade to your order.
