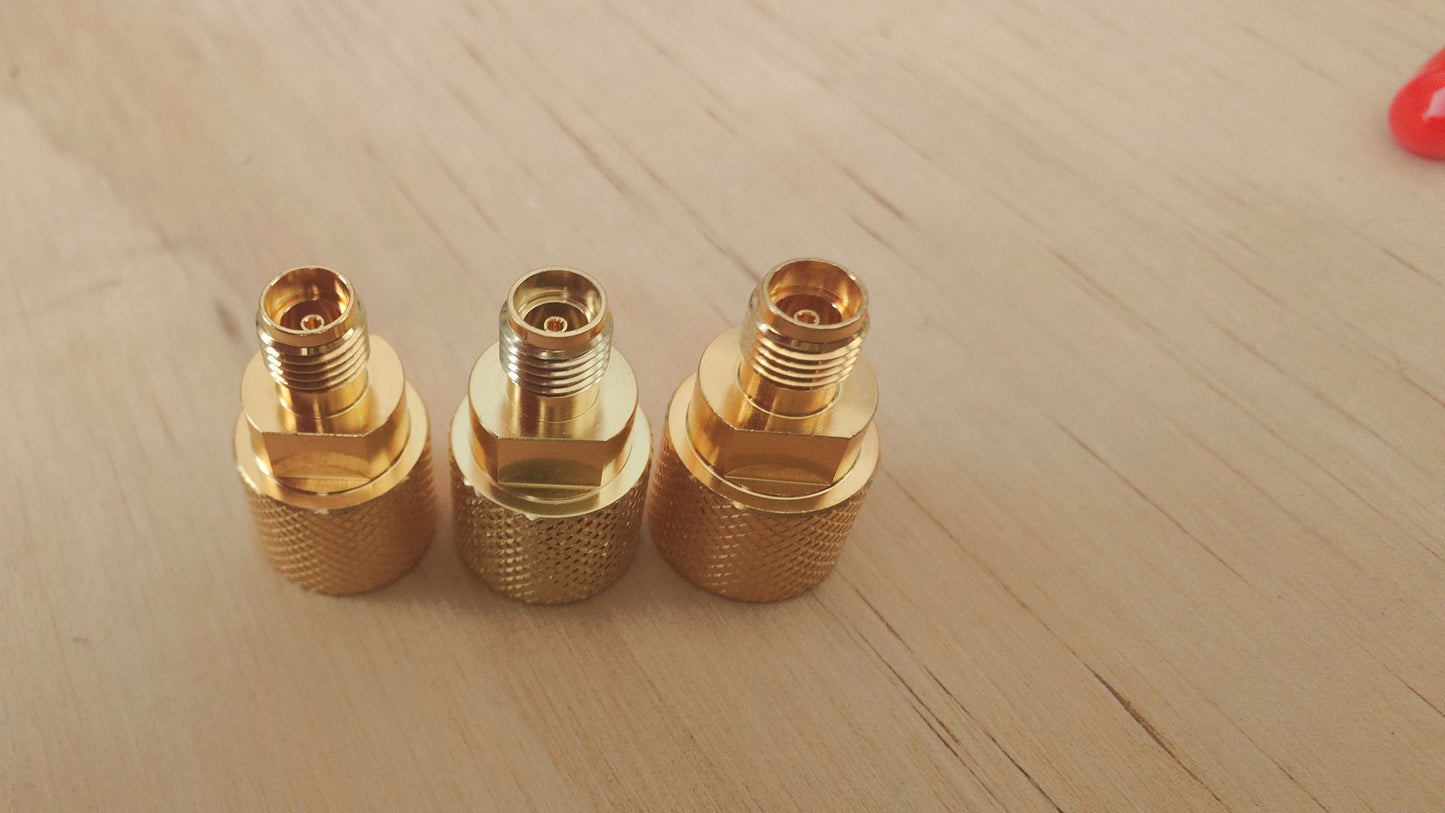

VNA Calibration kit, 3.5mm female connectors.
An inexpensive VNA calibration kit which can produce very accurate measurements.
Each individual kit is measured and characterized - an unheard of feature in this price range.

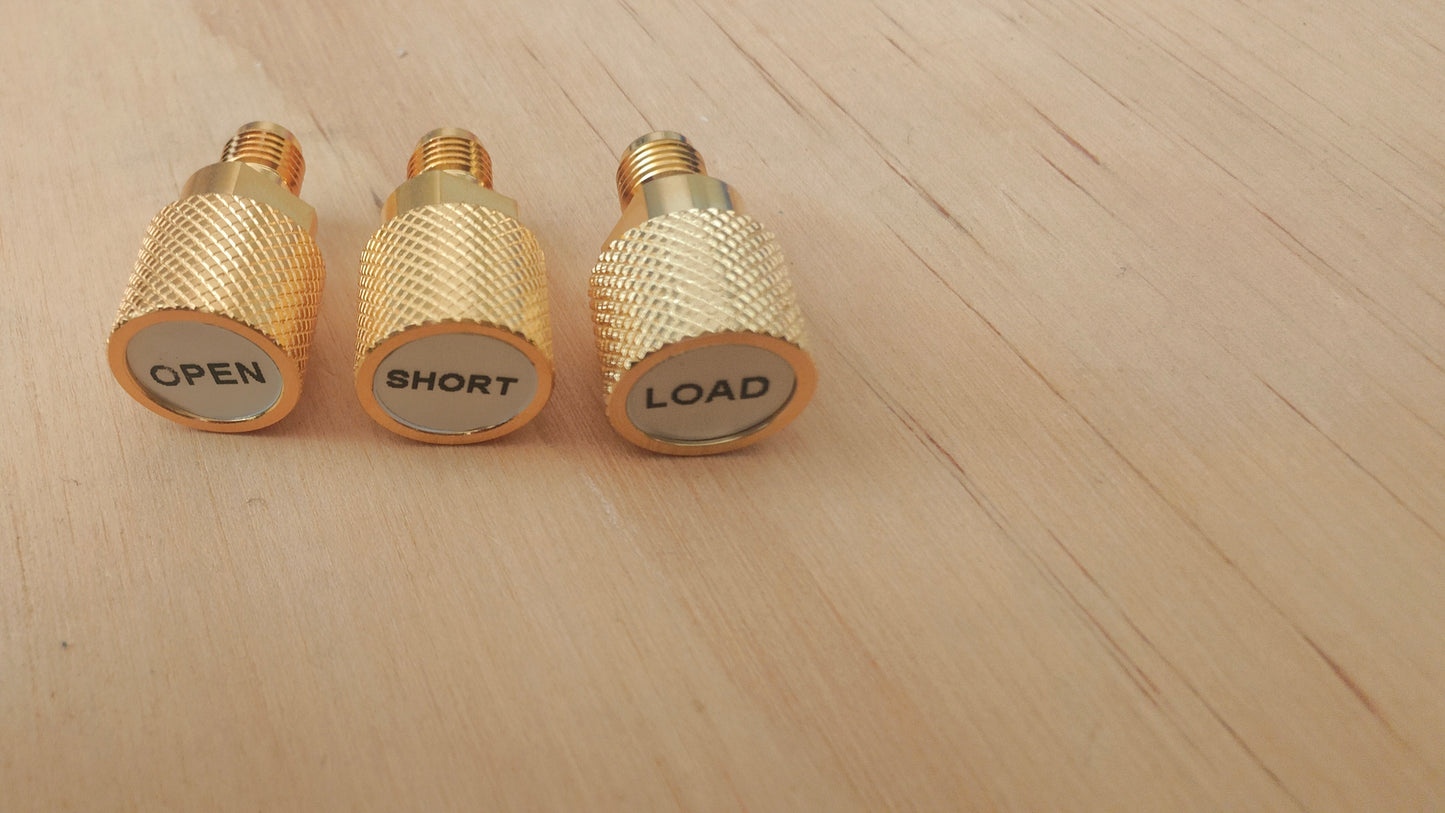

Contains Open, Short and Load calibration standards.
Supplied with a USB stick containing individually measured touchstone s1p files and individually calculated data models for each of the three standards.

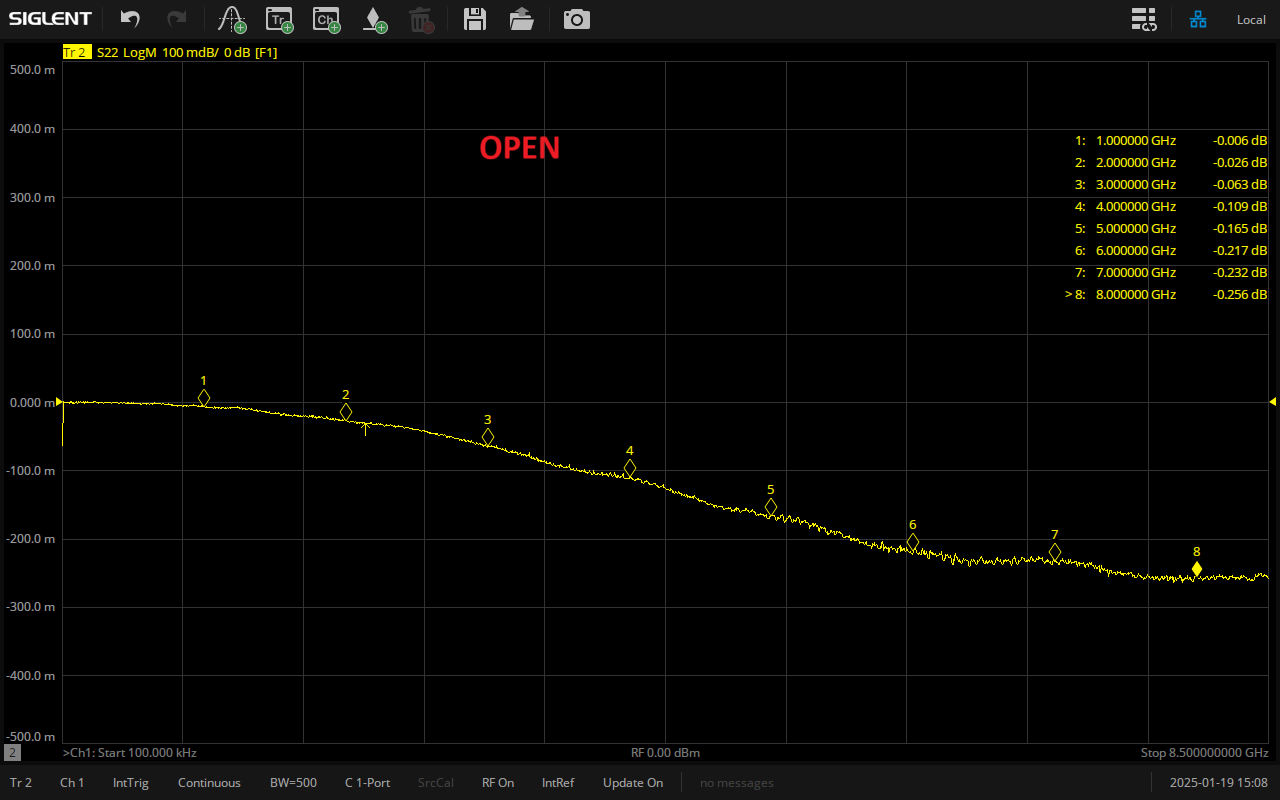

Data models include Open: Z0, Delay, Loss, C0, C1, C2, C3

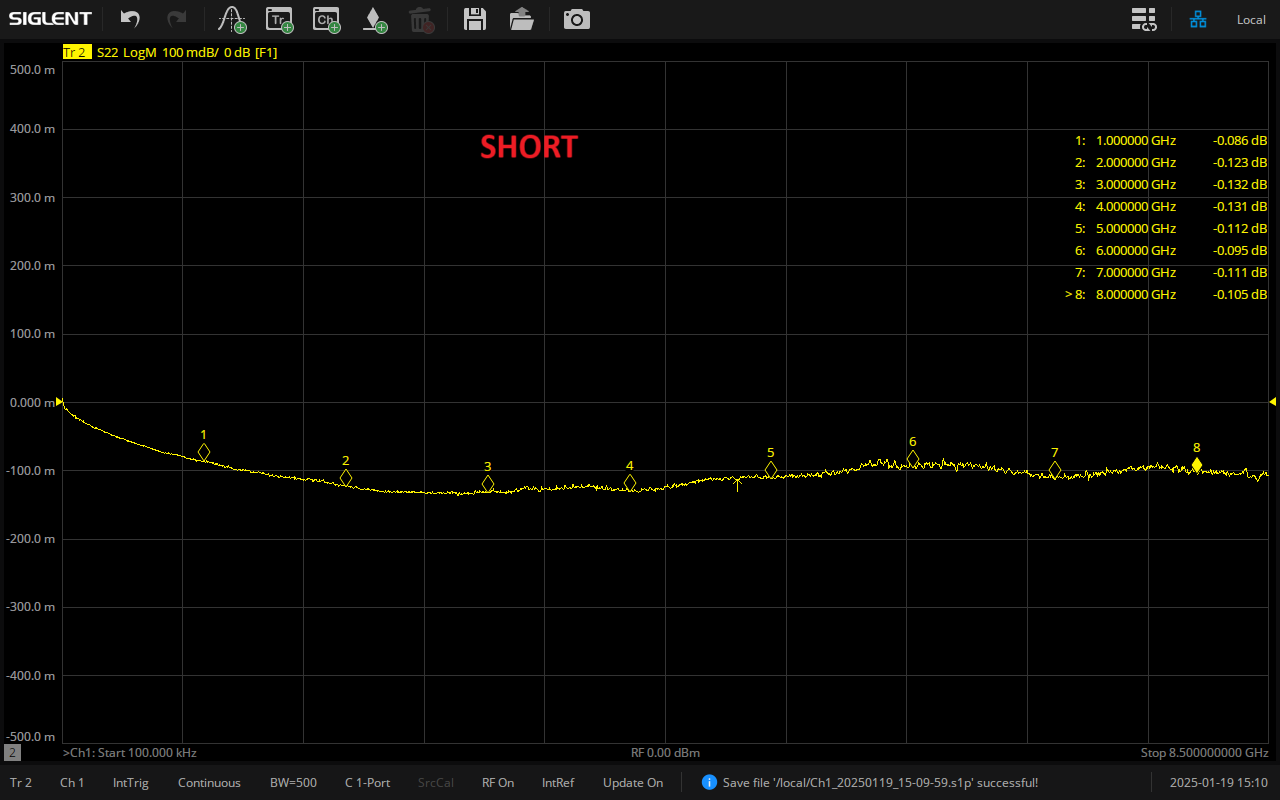

Short: Z0, Delay, Loss, L0, L1, L2, L3

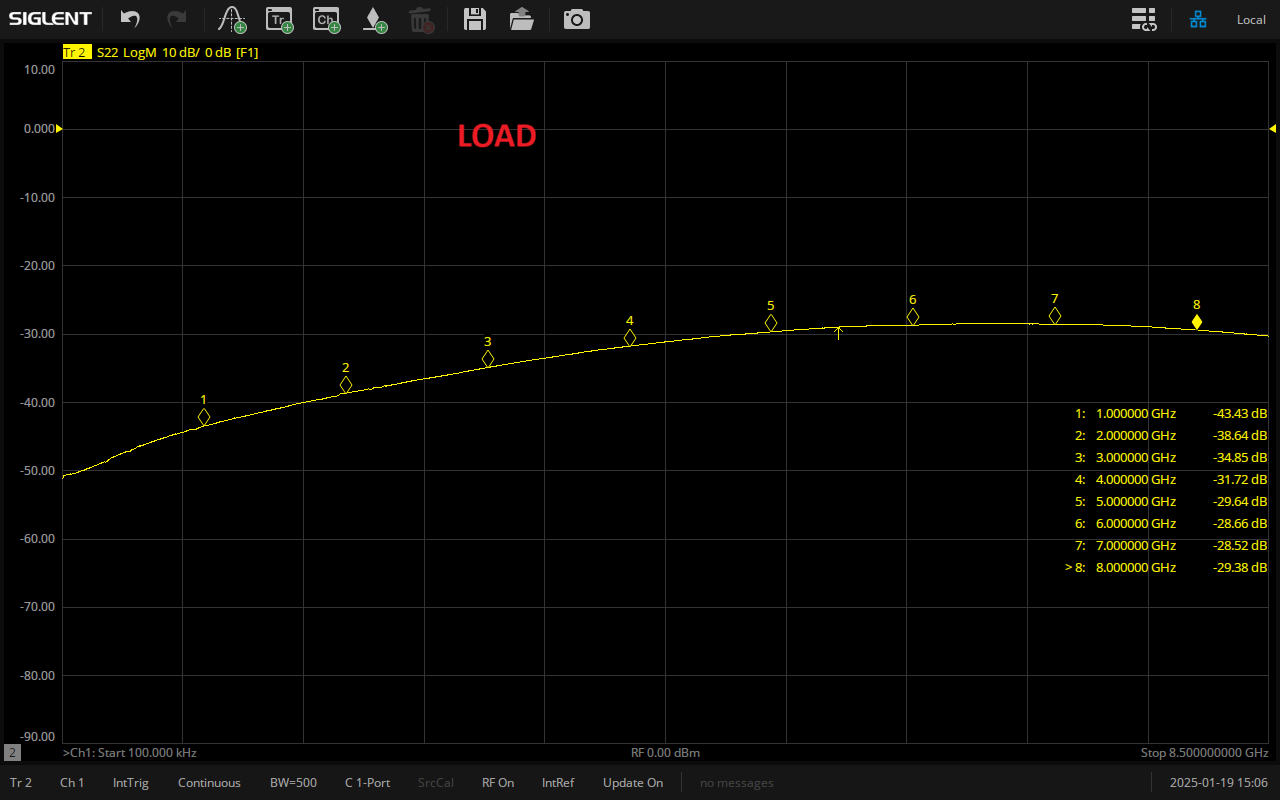

Load: Z0, Delay
For the highest accuracy when making measurements, calibrations should use the provided touchstone files.
The measurements were taken on a VNA calibrated with a genuine Agilent calibration kit.
